Customized Single Strut Channel Stainless Steel 304 Ss316 Unistrut
Products :
Galvanized C - shaped steel has uniform zinc layer , smooth surface
, strong adhesion and high dimensional accuracy . All surfaces are
wrapped by zinc layer . The zinc content on the surface is usually
120 - 275g / ㎡. It has long service life , corrosion resistance and
durability . It is a kind of galvanized C - shaped steel with the
strongest protection . It is of high quality .
Specifications:
| Product Size | 41 * 21 , / 41 * 41 / 41 * 62 / 41 * 82mm with slotted or plain1 -
5 / 8 '' x 1 - 5 / 8 '' 1 - 5 / 8 '' x 13 / 16 '' / or customized
size
length is cut according to customer's requirements
U or C shape with standard AISI , ASTM , GB , BS , EN , JIS , DIN
or customer's drawings |
| Product Material and Surface | · Material: carbon steel
· Surface coating:
o Galvanized o Hot Dipped Galvanizing o Electrolytic Galvanizing
o Powder coating o Neomagnal |

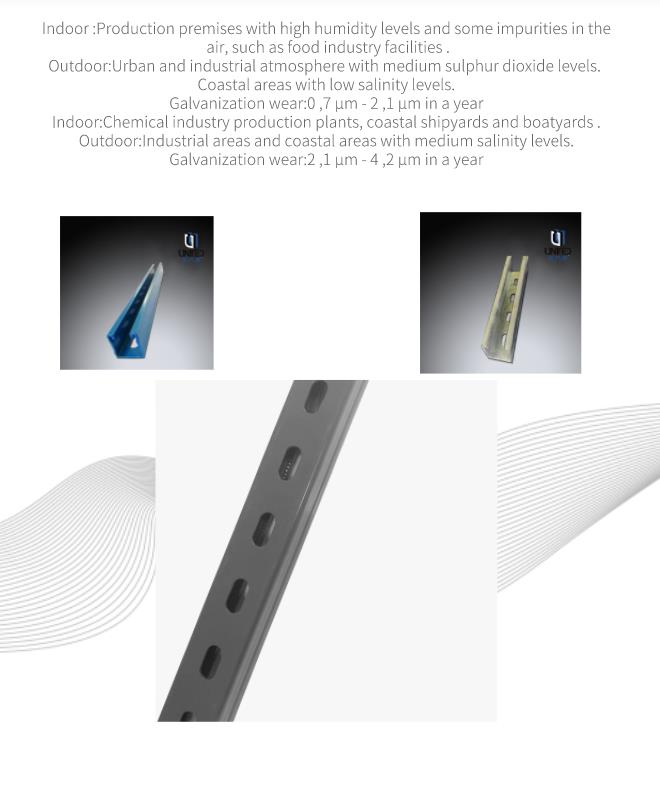

| Corrosion Rating of Hot Dipped Galvanized | For example Indoor:Production premises with high humidity levels and some
impurities in the air, such as food industry facilities. Outdoor:Urban and industrial atmosphere with medium sulphur dioxide
levels. Coastal areas with low salinity levels. Galvanization wear:0,7 μm - 2,1 μm in a year Indoor:Chemical industry production plants, coastal shipyards and
boatyards. Outdoor:Industrial areas and coastal areas with medium salinity
levels. Galvanization wear:2,1 μm - 4,2 μm in a year |
Strut Channel specifications:
Dimensions(mm) : 41 * 41 , 41 * 25 , 41 * 21 , 41 * 72 , 41 * 82
Steel thikness(mm):1.5 , 2 , 2.5 , 2.75 , 3
Length(mm): 3000 / 6000
Channel model: Perforated & Non - perforated
Benefit
1. Light - duty , medium - duty and heavy - duty can be qualified.
2. Any environmental condition can be applied due to its wide rang
of surface treatment and materials options
3. It has a good ventilation .
FAQ:
Q1: How to pay sample and express charges?
A: For express charges you can pay to our company account directly.
For those customers who has express account, we will send the
samples by freight collected. If customers need samples, we can
provide it for free.
Q2: What's your terms of payment?
A: Usually, we accept T/T, irrevocable L/C atsight. For regular
order, we prefer 50% in advance ,50% before shipping from
thefactory.
Q3: How do you control the quality?
A: We have Cable Tray Strut Channel and Busway QC team comply with
TQM. Each step is in compliance to the standards. At the same time,
we will take photos and shoot video for you.
Q4: What about lead or shipping time?
A: The lead time depends on quantity you ordered, but generally
within 10-30 days upon receipt of advance payment.
